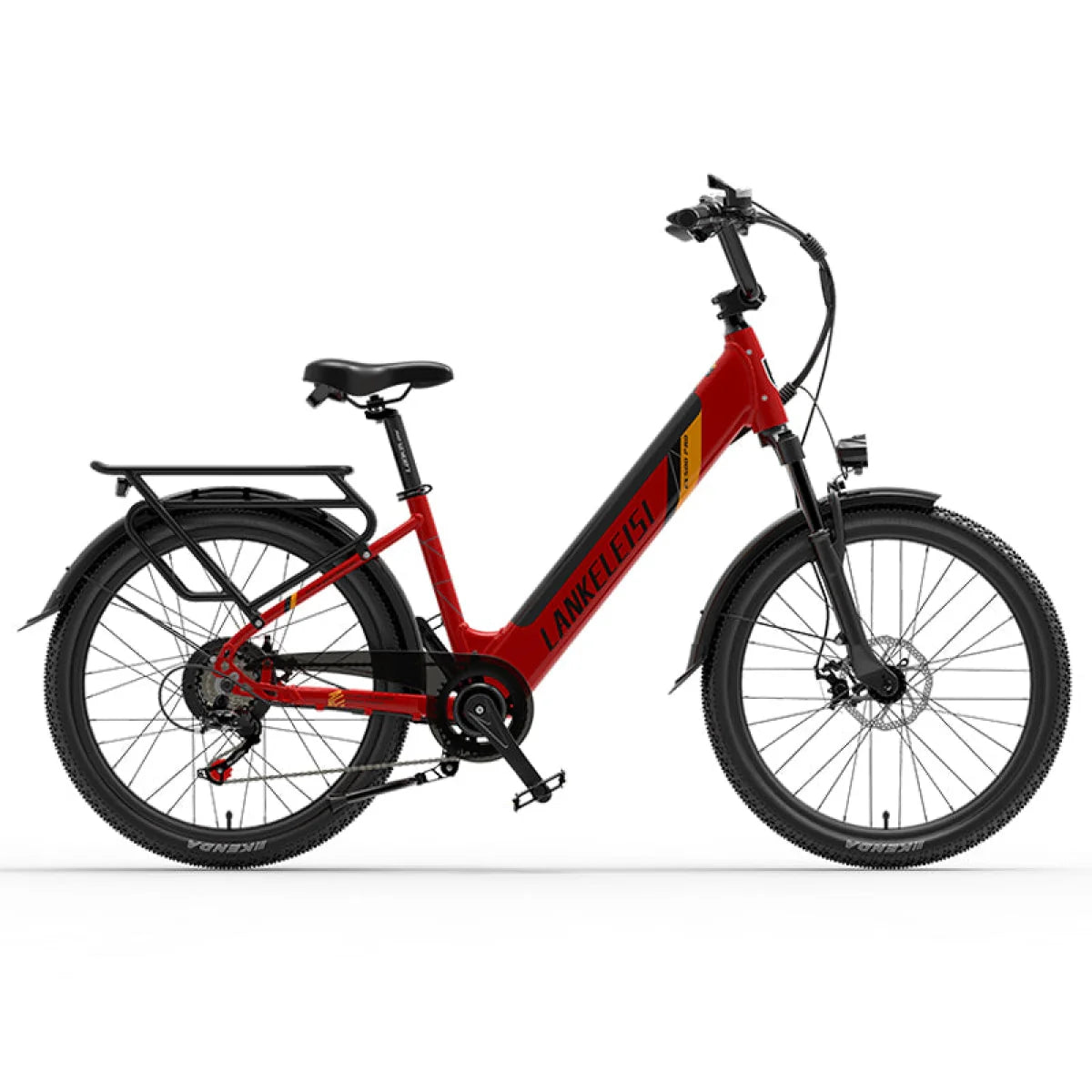

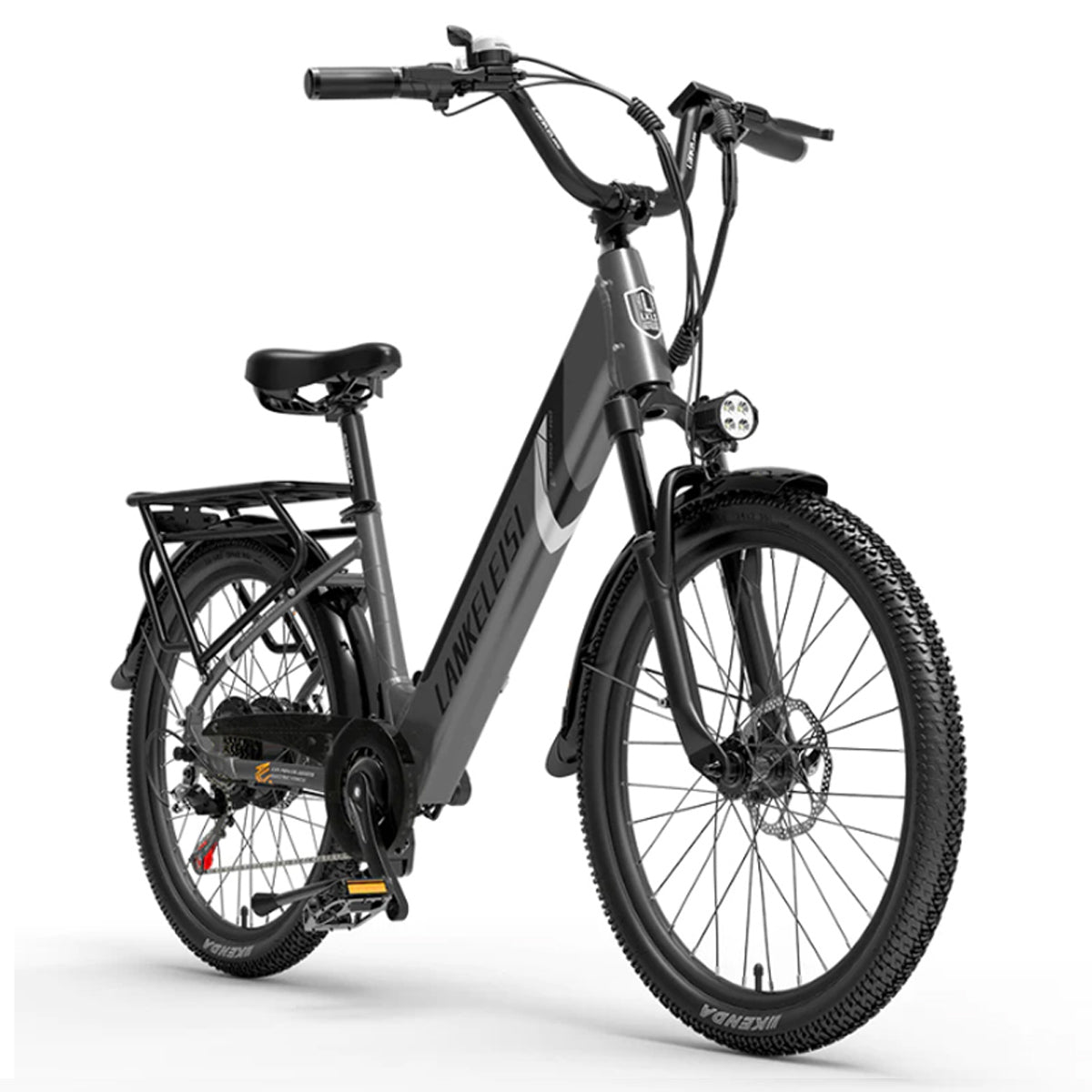

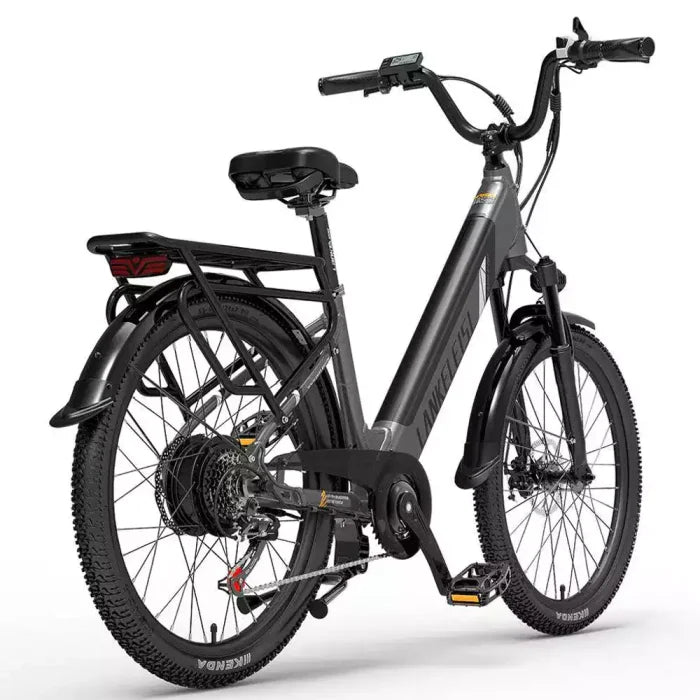

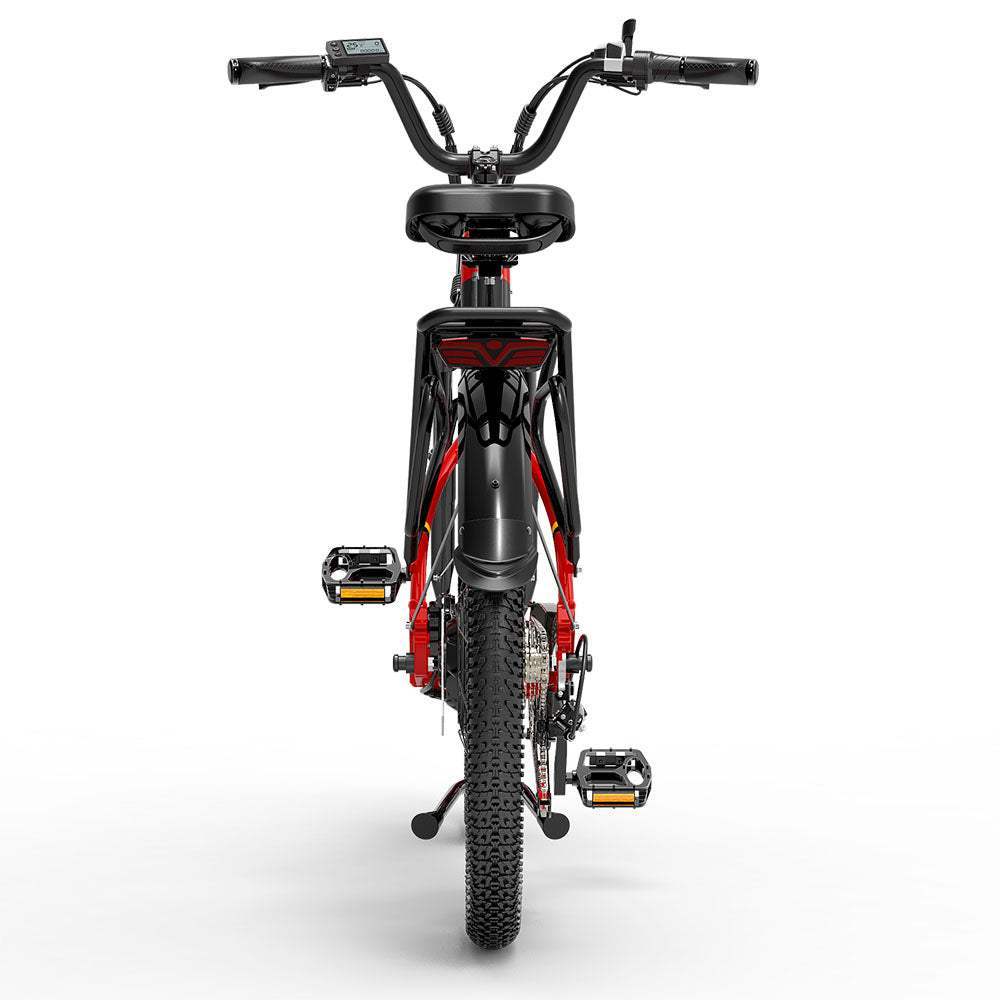

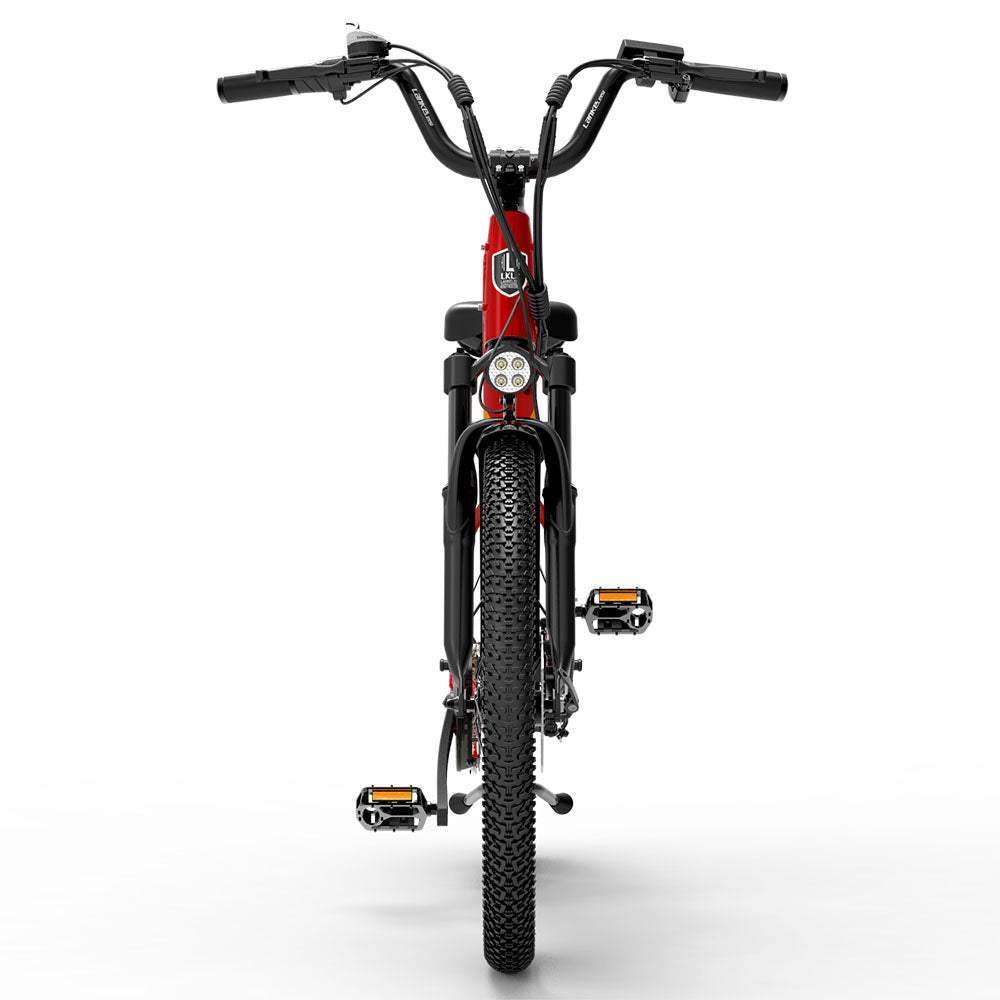

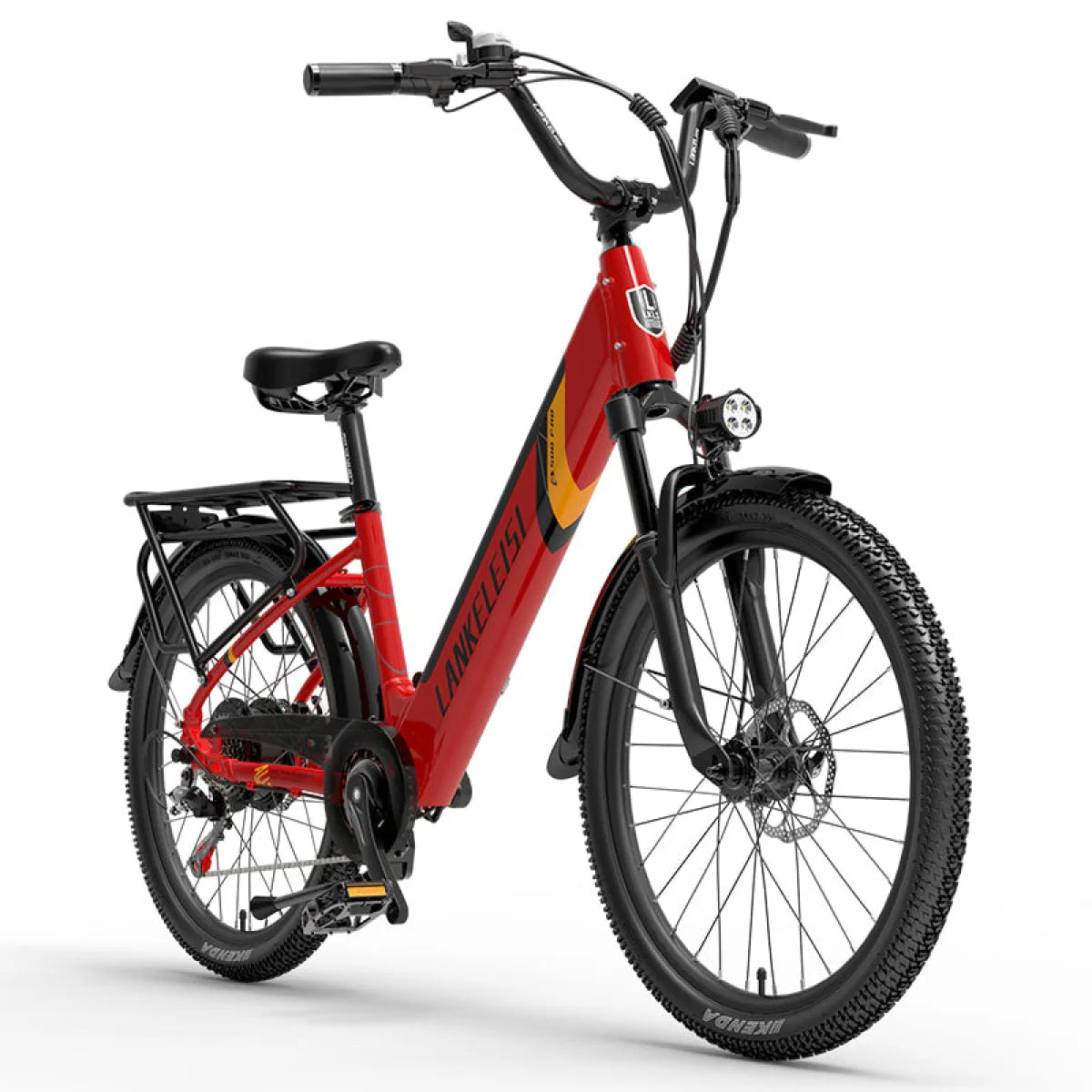

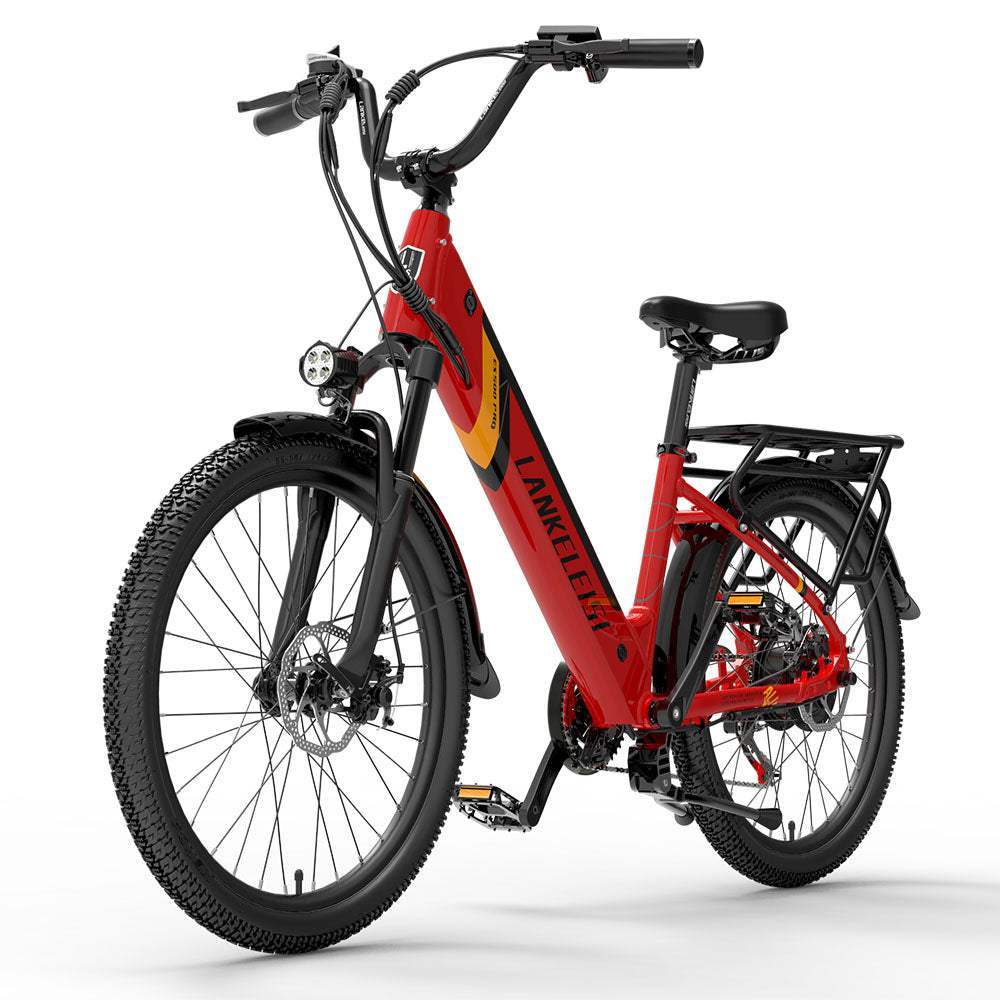

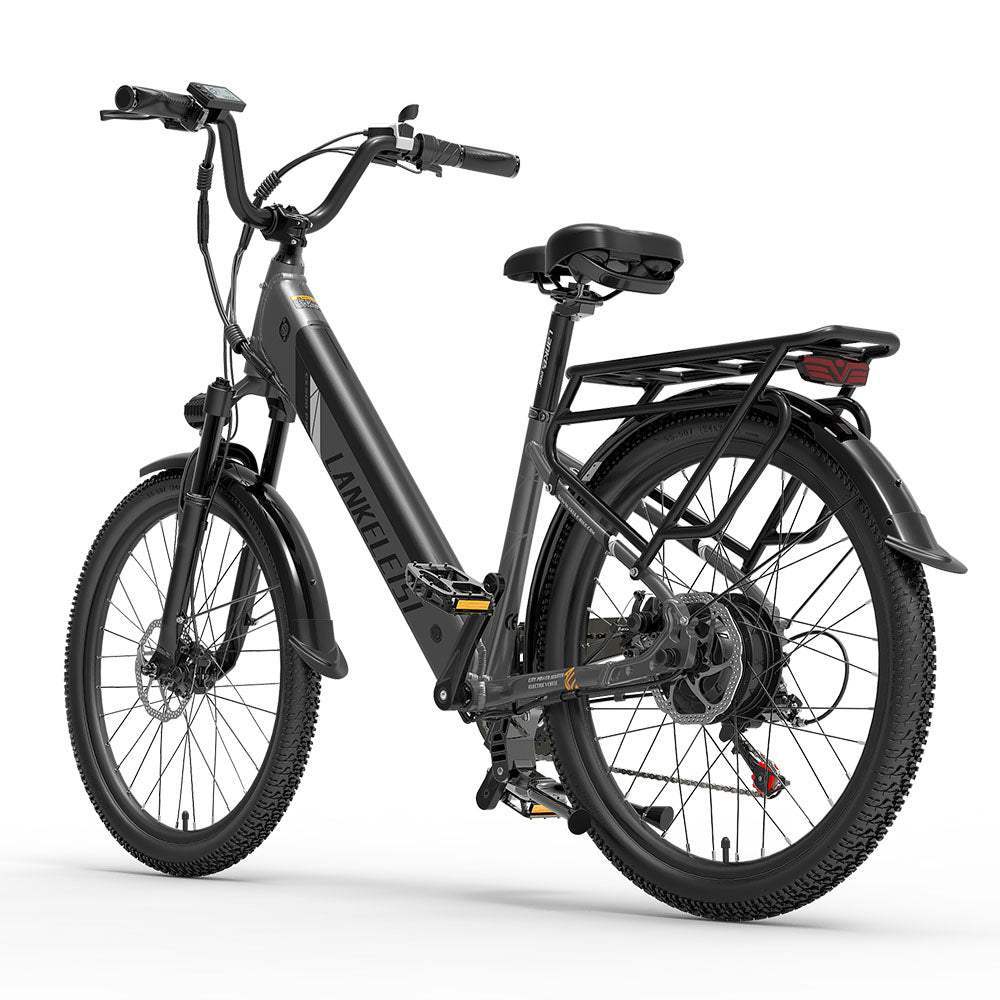

Lankeleisi | ES500 Step-thru 500w Rear hub motor 48v 14.5ah LG Removeable Battery E-bike

Motor and Performance

• Motor: 500W high-speed brushless motor with a maximum torque of 45Nm.
• Climbing Ability: Handles inclines up to 30° with ease.
• Top Speed: Not specified, but optimized for urban trails and steep streets.

Battery and Range

• Battery: 48V 14.5Ah removable lithium-ion battery with 18650 cells.
• Range:
  • Pure Electric Mode: 60–70 km (37–43 miles).
  • Pedal Assist Mode: 100–130 km (62–80 miles).
• Charger: 48V 3A, fully charges in 4–5 hours.
• Total Battery Capacity: 696Wh.

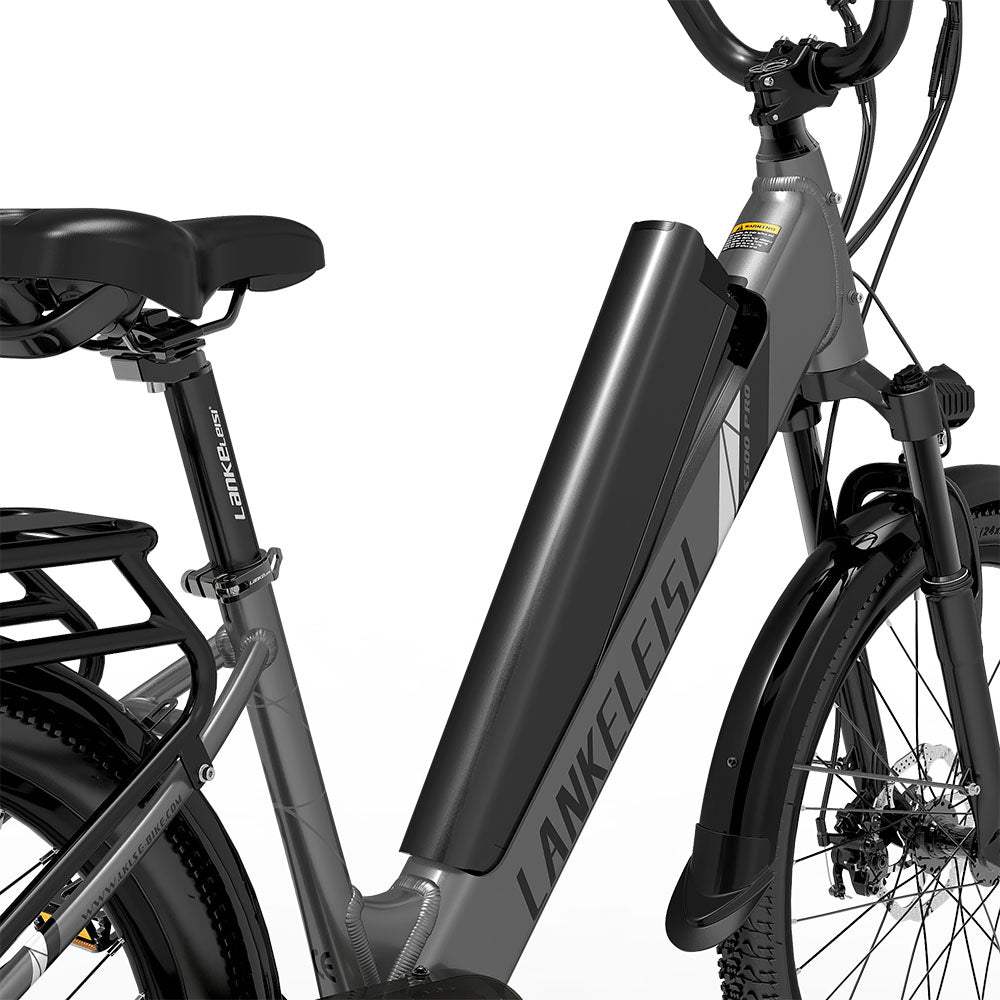

• Design: Battery integrated into the frame for safety and reduced risk.

Comfort and Suspension

• Front Fork Suspension:
  • 80mm fork travel.
  • Lockable and adjustable for various terrains.
  • Reduces shock and vibration for a smooth ride.

Display and Electronics

• LCD Display: Tracks speed, mileage, pedal assist levels, and battery status.
• Waterproof Grade: IP54, suitable for daily use and rain.
• Front Light: 48V high-brightness LED headlights.
• Throttle: Half-twist throttle for intuitive operation.

Frame and Build

• Frame: 6061 aluminum alloy.
• Tires: KENDA 24x2.4-inch, providing grip and stability.
• Weight: 27kg (60lbs).
• Max Load: 180kg (330lbs).

Gearing and Braking

• Gear System:
  • Shimano 7-speed drivetrain (Shimano TX50 shifter, TY300 derailleur, 14-28T freewheel).
  • Smooth and precise gear transitions for optimized riding.
• Brakes:
  • Mechanical disc brakes for reliable stopping power, even at high speeds.

Additional Features

• Waterproof Grade: IP54, ideal for daily commutes and light rain.
• Handlebar and Crankset: Lightweight aluminum alloy for durability.
